Description
NX Series – Single Cone Pumps/Compressors
Typically Ships From Stock
Our NX Series are designed as drop-in replacements for the XL series vacuum pumps. This 125-3000 CFM single cone liquid ring vacuum pump is designed to have only one moving part to induce maximum mechanical stability with maximum reliability. This cast iron single cone liquid ring vacuum pump is suited to deliver vacuum at maximum capacity in tough conditions of sudden water and particle slugs. We offer version with capacities ranging from 125-3000 CFM.
About NX Series
Models: NX-35,45,60,80,100,130,250 and 500
Power Range: 7.5 – 175 HP
Capacity Range: 125- 3000 CFM
Max. Vacuum: 28” Hg
MOC: Stainless Steel 304/ Stainless Steel 316, Cast Iron available for a few models
Features
Capable to be driven by variable frequency drives.
Drop-in replacement for XL series.
Capability to sustain back pressures.
Capability to be used with a variety of mechanical seals.
Standard construction is Cast Iron with mechanical seals.
Standard construction is stainless steel 304, optional 316 stainless steel construction.
Parts and repair kits readily available.
Available as bare pump or as a part of engineered systems.
Pump is performance tested before delivery.
2- year factory warranty.
Applications
Chemical Processing, Drying, Deaerating, Central Vacuum System, Fiber Setting, Exhausting Molding, Slot Extraction, Evaporating, Chucking, Extruder Venting, Molding, Cooking

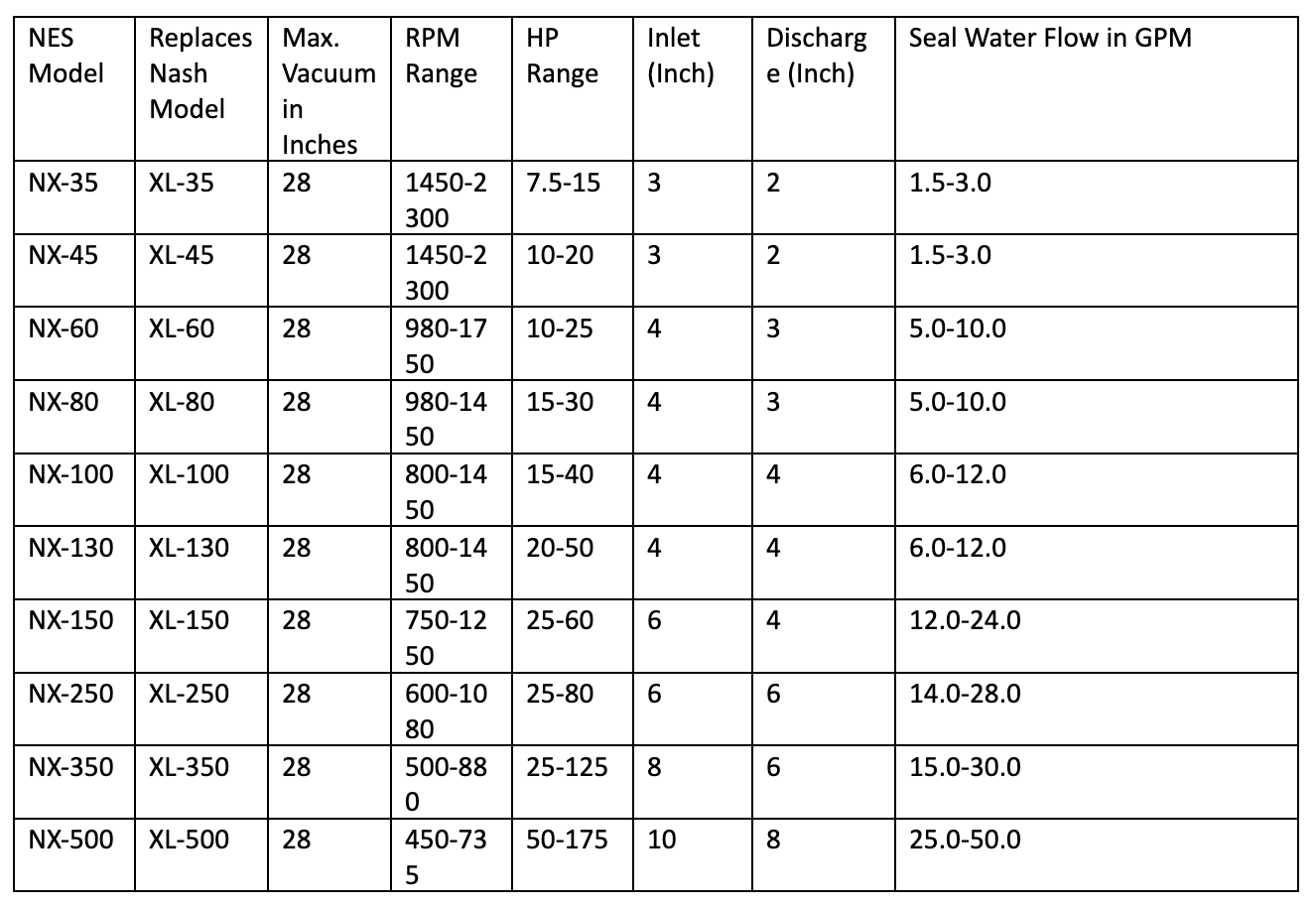

NX Series: Single Cone Pumps All Models
