Liquid Ring Vacuum Pump Repair Kit and Inlet/Outlet Silencer

Inlet / Outlet Silencers, Separators, Mufflers, and Manifolds
We at NES Company Inc. typically stock standard versions of smaller-diameter silencers and separators to fit our liquid ring vacuum pumps and compressors. Additionally, we can custom-engineer according to the needs of any application as per specifications. All these are available mostly at a fraction of cost compared to Burgess-Manning products.

Air/liquid separators are commonly used on liquid-sealed rotary positive blowers and liquid ring vacuum pumps to remove liquid and solid particles from airflow. By knocking-out excess liquid and entrained solids, your operating costs are reduced, and equipment life is extended. At the same time, our air/liquid separators effectively attenuate unwanted inlet and discharge noise. Minimizing your industrial noise level is an effective way to create a worker- friendly environment.


Features

Sizes 1″ – 3 1/2″
● Standard NPT inlet, discharge and liquid drain (P) connections.
Sizes 4″ – 16″
● Standard 125/150# ANSI drilled plate flange inlet and discharge connections

Download Spec Sheet

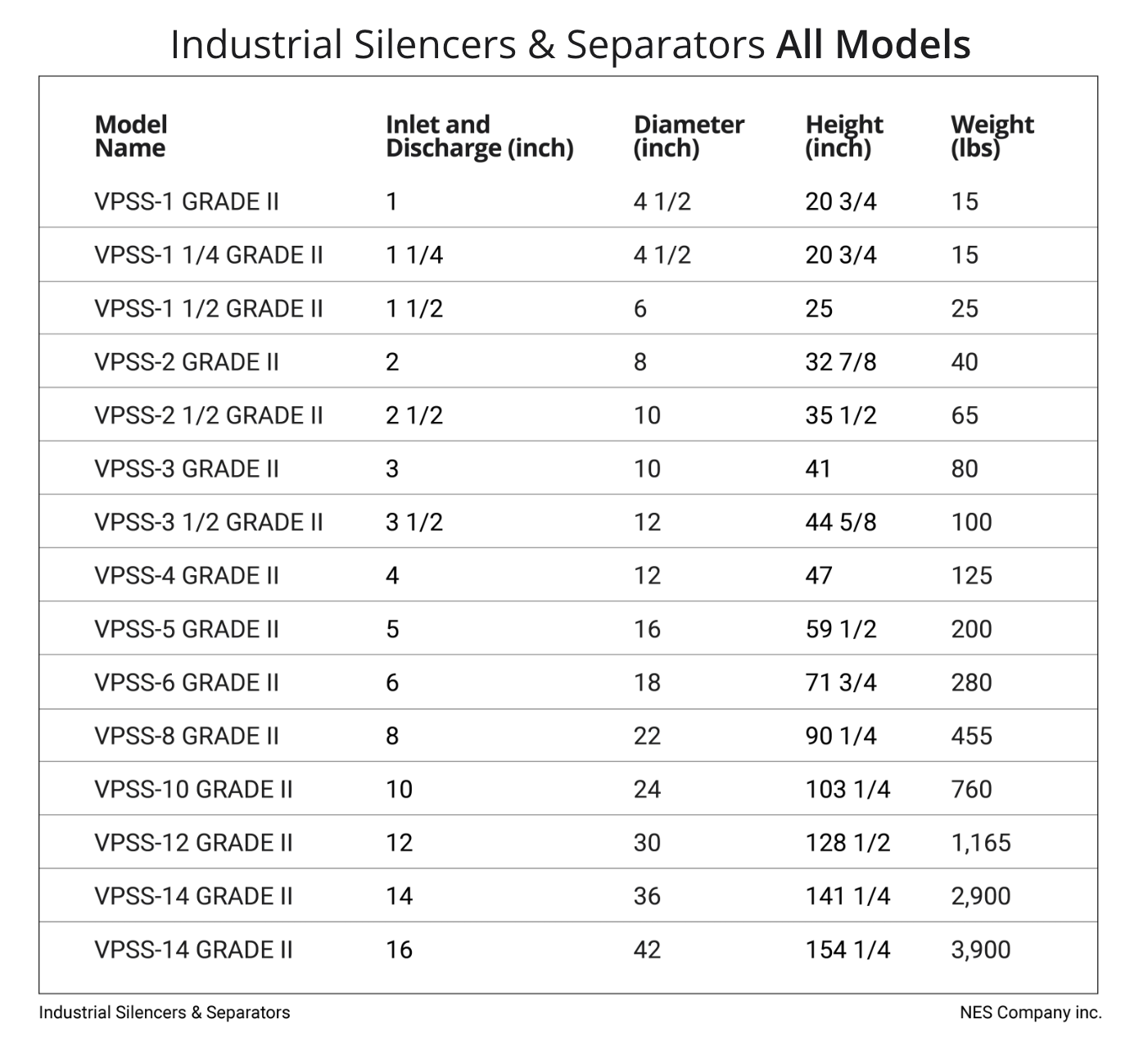

Industrial Silencers & Separators All Models

Scroll / Drag to view >>>

Model Inlet Diameter [in.] Discharge Diameter [in.] Height [in.] Weight [lbs.]
VPSS-1 GRADE II 1 4 ½ 20 ¾ 15
VPSS-1 1/4 GRADE II 1 ¼ 4 ½ 20 ¾ 15
VPSS-1 GRADE II 1 ½ 6 25 25
VPSS-2 GRADE II 2 8 32 ⅞ 40
VPSS-2 1/2 GRADE II 2 ½ 10 35 ½ 65
VPSS-3 GRADE II 3 10 41 80
VPSS-3 1/2 GRADE II 3 ½ 12 44 ⅝ 100
VPSS-4 GRADE II 4 12 47 125
VPSS-5 GRADE II 5 16 59 ½ 200
VPSS-6 GRADE II 6 18 71 ¾ 280
VPSS-8 GRADE II 8 22 90 ¼ 455
VPSS-10 GRADE II 10 24 103 ¼ 760
VPSS-12 GRADE II 12 30 128 ½ 1165
VPSS-14 GRADE II 14 36 141 ¼ 2900
VPSS-16 GRADE II 16 42 154 ¼ 3900
