Description
NL Series – 25-550HP & Cast Iron Dual Cone Liquid Ring Vacuum Pump
Typically Ships From Stock
Our 25-550 hp liquid ring vacuum pump is an excellent choice for replacing or repairing classic CL series liquid ring vacuum pump. These new replacement single stage/dual cone pumps are designed to be drop-in replacements for the CL series. Available in NL- 400, 700, 1000, 1500, 2000, 3000, 4000, 6000, and 9000 (up to 10,000 CFM). Standard construction is cast iron with Teflon packing. NES provides cast iron dual cone liquid ring vacuum pumps that are performance tested and include a 2-year warranty.
About NL Series
Models: NL-400,700,1000,2000,3000,4000, 6000 and 9000
Power range: 25 HP to 550 HP
Capacity range: 300 CFM to 10,000 CFM
Max vacuum: 27.5″ Hg
MOC: Cast Iron / Bronze / SS
Features
Drop-in replacement for classic CL series.
Standard construction is cast iron with packing.
Optional 304 or 316 stainless steel construction.
Optional Viton mechanical seals are available.
Parts and repair kits readily are available.
Available as a bare pump or as a part of engineered systems.
Standard models are typically shipped from stock.
Applications
Autoclaves, Chucking, Container filling, Labeling and forming, Cooking, Decorating, Deodorizing, Evaporating, Eviscerating, Exhausting, Extruder venting

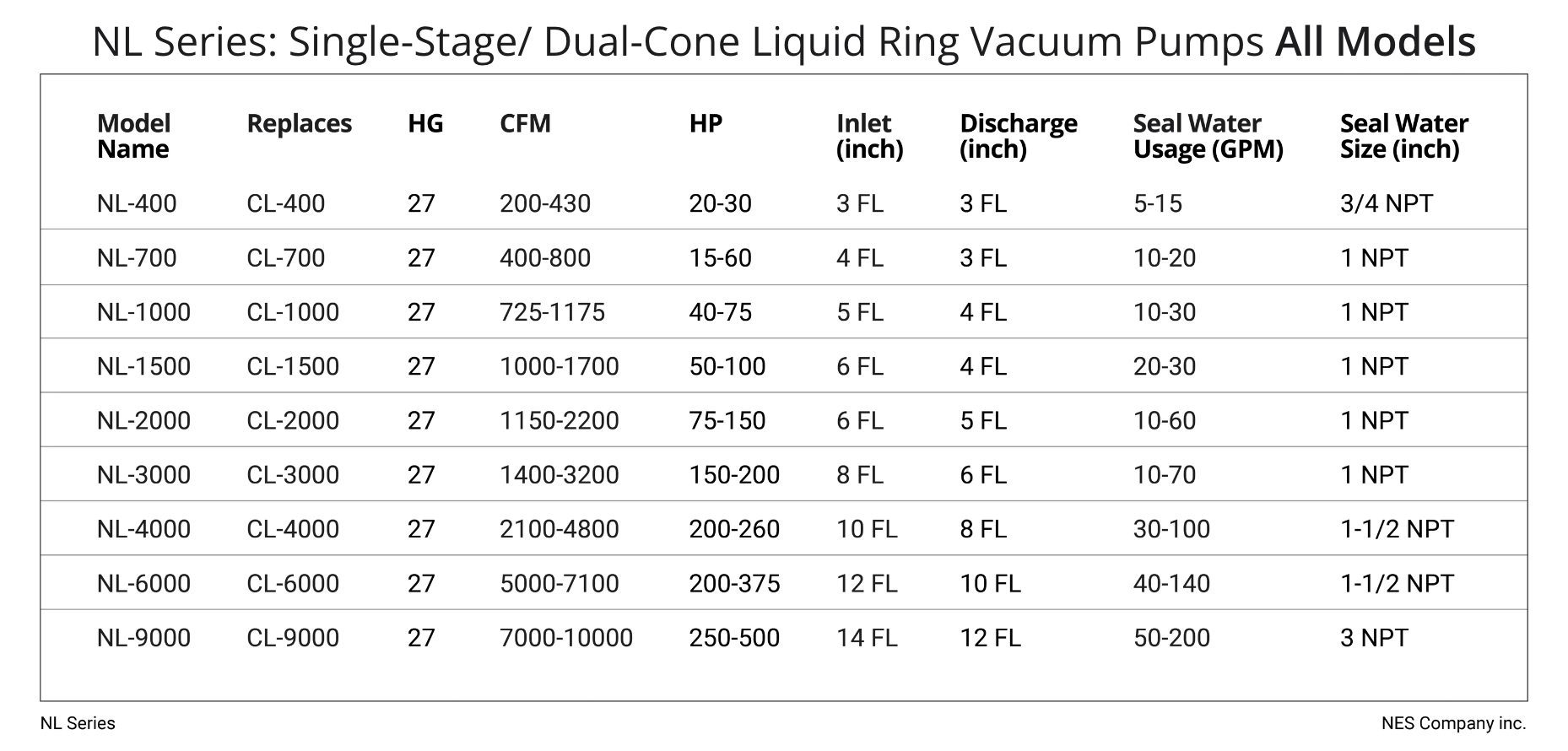

NL Series: Single-Stage/ Dual-Cone Liquid Ring Vacuum Pumps All Models
