Double-Stage Port Plate Liquid Ring Vacuum Pumps

65 to 4200 CFM

These rugged vacuum pumps have high quality standard mechanical seals to ensure reliable sealing and low shaft friction. The construction of the NTS series models provides a long service life and a wide range of selection in power, ultimate vacuum level, and flow capacity. All NES vacuum pumps are factory performance tested and guaranteed for a period of two years in warranty against manufacturer’s defects.

About NTS Series

Models: NTS – 110, 140, 180, 300, 350, 400, 500, 600, 800, 1200, 2300, 3300, 4200
Capacity Range: 65 – 4200 CFM
Max Vacuum: 28.9” Hg vac.


Features

Wide Range of Suction Pressure [4” – 28.9“ Hg].
Standard Construction is Cast Iron with 304 Stainless Steel Impeller and Shaft Mechanical Seals.
Optional full 304 or 316 Stainless Steel construction.
Available with optional single or double cartridge mechanical seals for better sealing.
Available as a bare shaft pump or as part of an engineered system.
2-year factory warranty against manufacturer’s defects.


Applications

Aerospace Part Manufacturing, Automotive Part Manufacturing, Bioethanol Production, Biofuel, Defense Manufacturing, Semiconductor Manufacturing, Environmental, Laboratory and Analytics, Molded Paper Production, Oil & Gas Refining, Petrochemical Synthesis, Pharmaceuticals Manufacturing, Plastic, Rubber, Composite Manufacturing, Pulp & Paper Processing, Steelmaking, Sugar Processing, Textile and Leather Manufacturing, Tobacco Production, Waterbox Priming.

DOWNLOAD SPEC SHEET

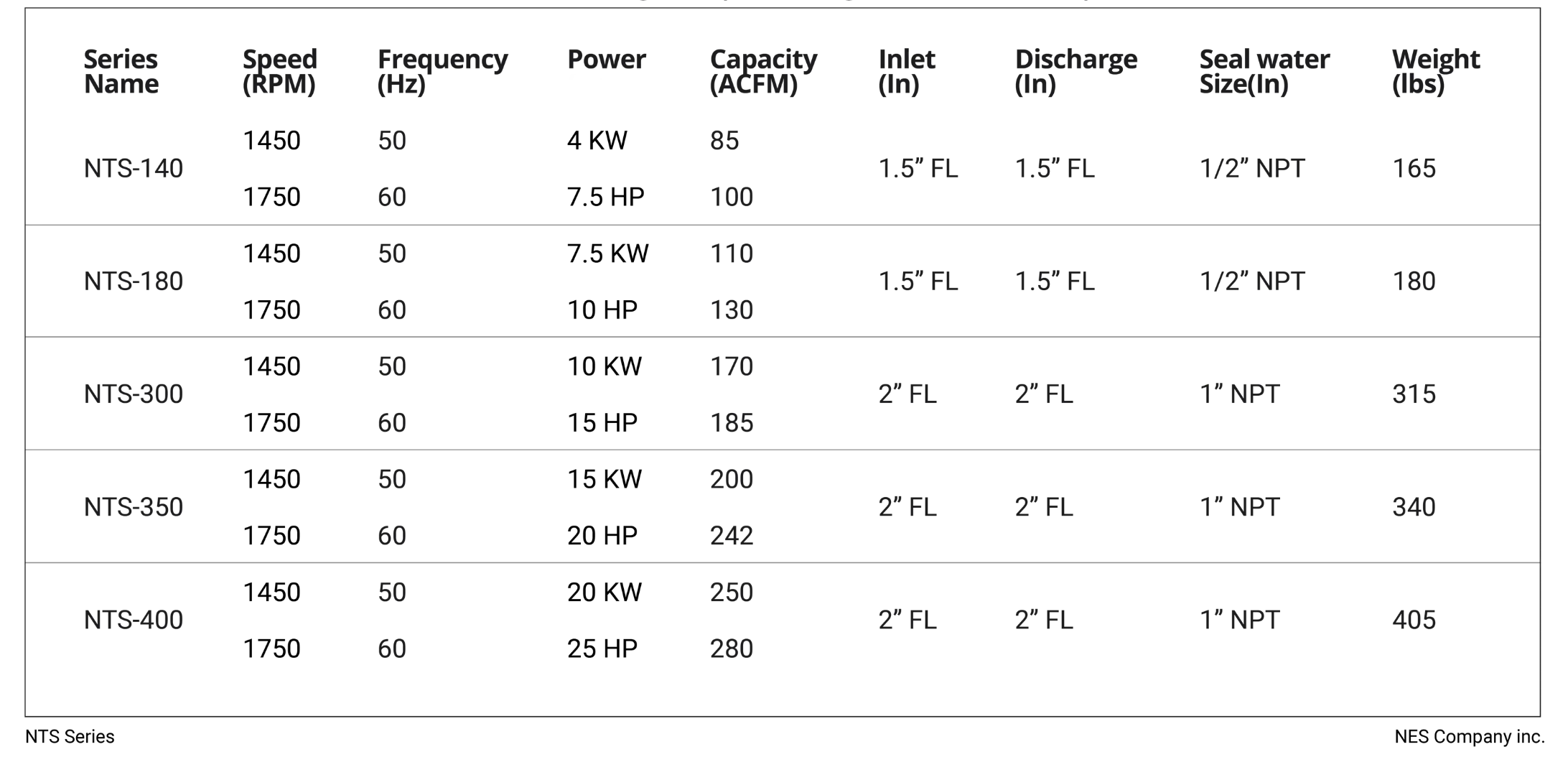

NTS Series: Double-Stage Port-Plate Liquid Ring Vacuum Pump Models

Scroll / Drag to view >>>

SERIES REPLACES SIHI MAX CFM MAX OPERATING VACUUM [“HGV] INLET [INCH] DISCHARGE [INCH]
NTS-110 LPH-45008 65 28.9 1.5 FL 1.5 FL
NTS-140 LPH-45311 85 28.9 1.5 FL 1.5 FL
NTS-180 LPH-45316 109 28.9 1.5 FL 1.5 FL
NTS-300 LPH-55312 167 28.9 2 FL 2 FL
NTS-350 LPH-55316 201 28.9 2 FL 2 FL
NTS-400 LPH-55320 250 28.9 2 FL 2 FL
NTS-500 LPH-65320 295 28.9 2 3/8 FL 2 3/8 FL
NTS-600 LPH-653237 362 28.9 2 3/8 FL 2 3/8 FL
NTS-800 LPH-75320 530 28.9 2 3/8 FL 2 3/8 FL
NTS-1200 LPH-85340 1059 28.9 4 FL 4 FL
NTS-2300 LPH-95354 2295 28.9 5 FL 5 FL
NTS-3300 LPH-95367 3390 28.9 6 FL 6 FL
NTS-4200 LPH-10534 4238 28.9 8 FL 8 FL
