NC Series – Single Stage/Single Cone Pumps/Compressors
Typically Ships From Stock
NES Company is proud to offer our conical lobe design single stage liquid ring vacuum pumps. These new 7-7.5 HP single stage liquid ring vacuum pumps have been designed to be drop-in replacements for classic SC series pumps. NES pumps are factory performance tested and included a 2-year warranty.
About NC Series

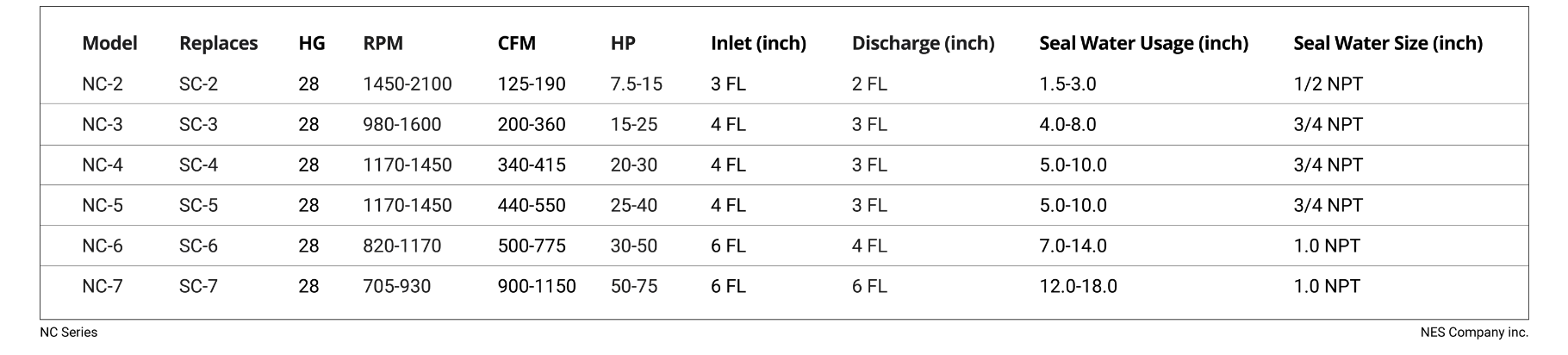

Models: NC-2,3,4,5,6 and 7
Power range: 7.5 HP to 75 HP
Capacity range: 125 CFM to 1150 CFM
Max vacuum: 28″ Hg
MOC: Cast iron/stainless steel 304/stainless steel 316
Drop-in replacement for classic SC series.
Components are internally/externally interchangeable with SC series.
Standard construction is cast iron with Teflon packing.
Optional 304 or 316 stainless steel construction.
Optional factory installed mechanical seals
Parts and repair kits available to fit SC series.
Available in the bare pump, direct drive or V-belt systems.
Includes 2-year factory warranty.
Autoclaves, Chucking, Container filling,, Labeling and forming cooking, Decorating, Deodorizing, Drying, Evaporating, Eviscerating, Exhausting, Extruder venting
